Insert Perimeter LED Lighting M04828LAD

  • Style:
  • LED
  • Model:
  • M04828LAD
  • Kelvin:
  • 3000K to 6000K Dimmable
  • Watts:
  • 36
  • Lumens:
  • 3168

3000 to 6000 Kelvin - Dimmable LED Back Lit Mirrors

Operating life – 50,000 hours

ETL Intertek Listed Approval

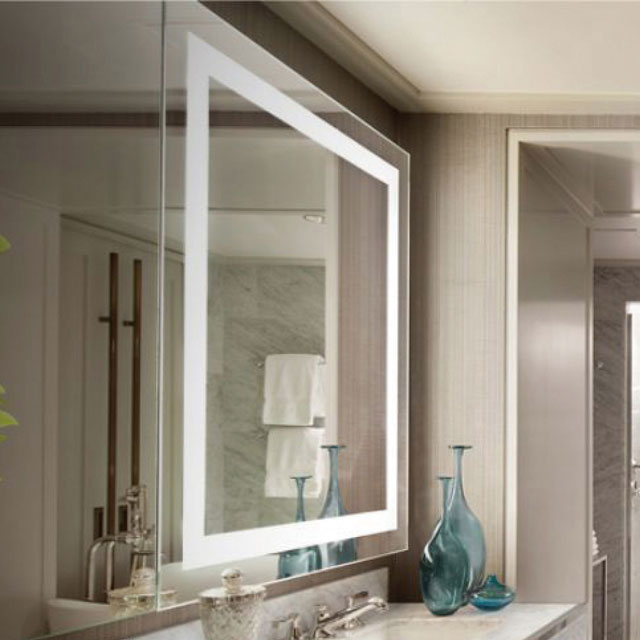

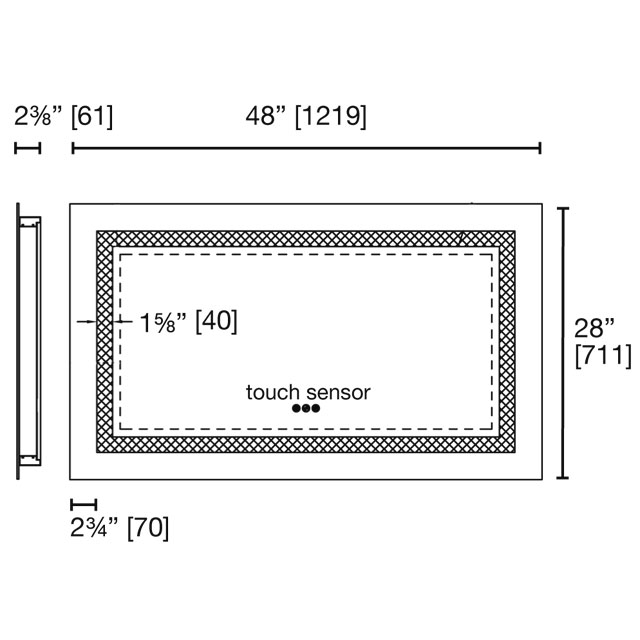

The rectangular backlit mirror has insert lighting on all four sides. The LED strip shines through a frosted 1 5/8” opening in the mirror. The opening is large enough to illuminate the face and provide ambient light in the room. The mirror can be hardwired to a wall switch and is turned on and off with the toggle switch on the underside of the mirror frame. The 3 button sensor controls the colour of the light (Kelvin) and the brigthness of the light (Lumens).

The mirror comes with a pre-installed 31 1/2” x 11 7/8” anti-fog mat. [cULus approved]



Download PDF files:

M04828LAD Specification

Mirror Installation Instructions



$$$$$
